The X-CUBE X2 air handling unit is suitable for small to medium volume flow rates, can be configured to virtually any application, and comes with a range of features, such as the X-CUBE Configurator, a web-based tool that helps with selecting and sizing air handling units.

Features

Freely configurable units and pre-configured compact solutions
Good mechanical strength of the unit base
Excellent hygiene properties thanks to smooth internal surfaces and small clearances
Intuitive operation and integration into building management systems using the control software X-CUBE control 2.0

Classes in accordance with EN 1886

Thermal transmittance class T2
Thermal bridging class TB2
Casing leakage L1
Stability D1

Options

Entire solution - X2 freely configurable:

In 25 sizes
For volume flow rates from 0.17 to 6.9m³/s (600-15,000m³/h)
Suitable for all air treatment processes
Heat recovery: per rotary heat exchanger, plate heat exchanger or RAC system

Fast and efficient solution - X2 compact pre-configured:

In 12 sizes
For volume flow rates of 0.17 to 4.2m³/s (600-15,000m³/h)
Fast availability and high efficiency
Latest EC fan technology with peak efficiencies of up to 75%
Heat recovery: by means of rotary heat exchanger or counter flow plate heat exchanger
Expansions of functionalities are possible at any time

Smart control with X-CUBE control 2.0

Energy efficiency without compromise

X-CUBE X2 is equipped with control unit X-CUBE control 2.0. The unit can be operated using a high-performance touchscreen, and can be connected to TROX systems X-AIRCONTROL, TROXNETCOM and X-TAIRMINAL.

The monitoring functions of X-CUBE control 2.0 with automatic status messages make for convenient system control around the clock.

The X-CUBE is seamlessly integrated into the central building management system via BACnet IP or Modbus TCP/IP. Thanks to its universal connectivity, the output of the air handling unit can be controlled based on demand.

Modular and equipped for the future

The modular design of the controls provides the utmost flexibility and allows for expansion at a later date.

TROX Cloud Connectivity from X-CUBE control 2.0 makes the X-CUBE X2 IoT-compatible. In the future, this will open up important potential, for example through remote maintenance and predictive maintenance.

Fast and simple configuration for anywhere in the world

The web-based Online Configurator for AHUs lets you configure your air handling unit in a simple manner based on your parameters. All you need is a web browser.

You specify the type of installation and heat recovery and enter the key sizing points (volume flow rate, external pressure demand, air temperatures, humidity), the desired air filtration and the required heating or cooling capacity.

In just a few seconds, the system will determine the best possible unit design and project the lifecycle costs for the specific location.

The wide range of output options provides support for further work. Drawings, data sheets and specification texts are produced and available to download. It is possible to create BIM files using the TROX CAD browser.

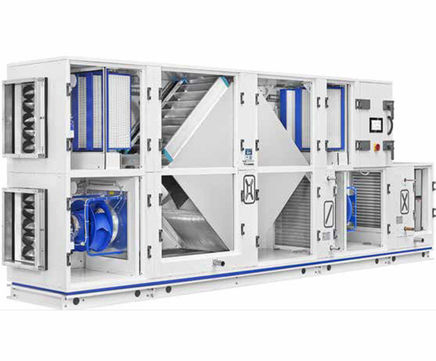

X-CUBE X2 air handling unit
