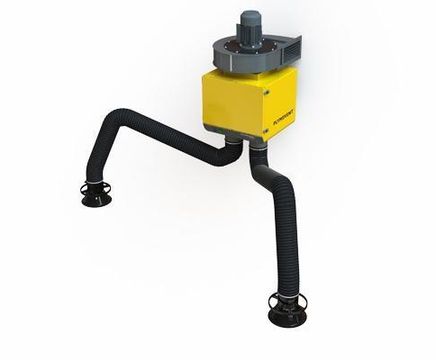

DualGo is a fume extractor with two extraction arms both with a reach of up to four meters. It is recommended for welding processes that produce little fume (like TIG welding) or for workplaces where welding is occasional or is light.

The DualGo is mounted to the wall and is designed for fixed workplaces. DualGo has an extra powerful fan and a large filter of 26m2. It is designed to have both extraction arms in operation at the same time. DualGo has an acoustic ‘filter full’ alarm and an integrated spark deflection plate for enhanced safety.

There are two versions of the DualGo units: The DualGo and the DualGoPlus. The difference is in the extraction arms connected to the filter unit. The length of the arm can vary from 2 to 4 meters. The DualGo range is recommended when 2 coils of solid welding wire are consumed, or 15 kg of welding electrodes per month. Both units meet the requirements regarding welding fume separation efficiency class W3, according to ISO standard 15012-1:2013.

Key features

Extra powerful fan to have both extraction arms in operation at the same time
Excellent price x performance
Two stage filter for longer filter life
Enhanced safety with integrated spark deflection plate
W3 marking
ISO 15012-1

Applications

Light or occasional welding activities
Steel or stainless steel welding
TIG welding
Auto repair shops
Agricultural sector
Welding schools
Technical colleges

DualGo

DualGo has two hose tube arms connected to the filter unit. This hose tube arm, an EconomyArm, is the economical option recommended for light welding activities.

DualGoPlus

This unit is supplied with two aluminum KUA arms. The KUA extraction arms are the ‘Number One’ choice of our customers, thanks to their user-friendliness, flexibility and easy operation.

DualGo and DualGoPlus fume extractor with two arms
