Pump specialist Stuart Turner further extend their Aquaboost range of cold-water pressure and flow solutions for domestic or light commercial applications with their new iBolt and iMatic intelligent variable speed boosting solutions.

Introducing the new simple to install, high-performing Aquaboost iBolt

Available as a stand-alone single pump or single and twin booster sets. The Aquaboost iBolt range of variable speed booster pumps and pump sets feature a horizontal multistage pumps controlled by air-cooled variable speed frequency inverters mounted directly on the pump motor, designed to deliver a constant water pressure supply where flow demand varies. These high performing yet intuitive to commission pumps deliver flow rates from up to 5 m3/hour to 15 m3/hour and head pressures up to 9 bar depending on the chosen variant within the range.

With an added buffer of pressurised cold water to supplement pressure and flow, iBolt Booster sets are supplied with a WRAS approved 8 or 24 litre pressure vessel, combined with either a single or twin pump set mounted on a powder coated base plate for ease of installation. Twin booster sets offer up to 15 m3/hour per pump with heads up to 7.1 bar.

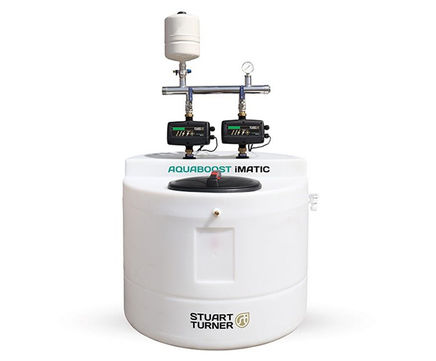

Aquaboost iMatic cold water booster systems

Aquaboost iMatic cold water booster systems are extremely quiet in operation, compact and simple to use. Supplied as an integrated system featuring one or two submersible multistage pumps controlled by automatic variable speed frequency invertors and packaged with a polypropylene break tank.

iMatic systems are designed for installation where space is limited yet despite their size are capable of offering flow rates up to 10 m3/hour (per pump) and producing head pressures of up to 6.6 bar, depending on the chosen product.

For added peace of mind, Aquaboost iMatic integrated systems utilise WRAS approved materials and include an AC air gap within the tank design. With tank capacities ranging from 450 litres to 1200 litres Stuart Turner are confident you can find the ideal solution to your water pressure and flow boosting needs. Simply connect to the mains water supply.
