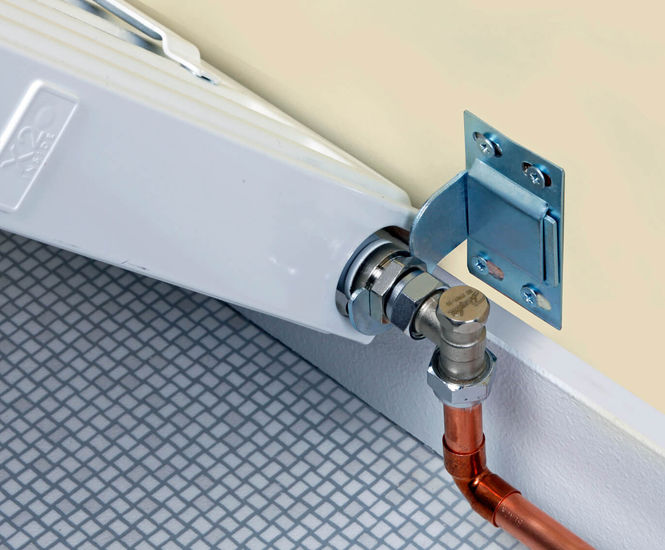

Rotarad™ is a unique, WRAS, KTW and ACS approved rotating radiator valve kit, which can be used on either new installations or retrofitted to existing radiators. It enables easy access behind radiators for cleaning and maintenance by rotating the radiator down to floor level without having to drain or turn off the heating system.

Rotarad™ features a patented rotating valve fitting, which is used to adapt standard radiator valves and can be easily fitted to any standard panel radiator. This allows the radiator to pivot along the axis of the radiator valves, without putting any strain on the pipework or fittings. Radiators then become more practical, as they can be lowered quickly, simply and safely without the risk of causing a leak or worse. A robust bracket holds the emitter upright and against the wall.

Rotarad™is fully compatible with Contour’s DeepClean range.

Key features

  • Can be used in new and retrofit applications
  • Flame-free installation
  • Simple and fast to fit and operate
  • Reliable, safe and economic to utilise
  • WRAS approved
  • WRAS, KTW, ACS approved ‘O’ ring
  • A design life of 50 years minimum
  • Can be rotated through 360 degrees
  • Slimline, unobtrusive and paintable

Typical applications

  • Healthcare environments
  • Care homes
  • Social housing
  • Schools and nurseries

Technical information

  • Body available in either yellow brass (EN12164 CW614N), red brass (DIN 50930-6) or stainless steel (AISI 316. 4401.1)
  • EPDM ‘O’ ring face seal (EN681-1)
  • EPDM ‘O’ ring tube seal (EN681-1)
  • Compatible with EN 1057 copper tube, soft, half-hard and hard
  • Compatible with BS4127, DIN17455 and DIN17457
  • Compatible with thin wall metallic tube that are dimensionally as EN1057
  • WRAS approved
  • WRAS, KTW, ACS approved ‘O’ rings
  • Design life of 50 years minimum
