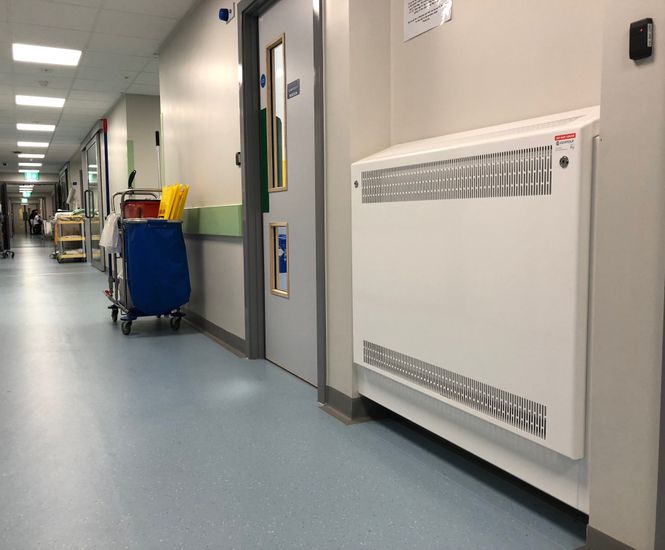

DeepClean™ floor- and wall-mounted radiators meet the hygiene demands of hospitals and other healthcare environments. With their easy-to-remove guards and BioCote® antimicrobial coating, DeepClean™ low surface temperature radiator systems offer the key benefits of enhanced hygiene and cost savings.

Contour’s complete LST and anti-ligature radiator systems consist of three elements:

Internal heat emitter

Contour uses the latest QRL Hi-Lo Round Top radiators in its full range of LST and anti-ligature radiators.

These have been designed with smaller water channels so they contain less water on average than ‘compact’ style panel emitters, allowing more metal to be in contact with the water for a faster warm-up time.

Significantly, they can deliver considerably higher outputs for the same heat energy input compared to panel emitters. The Round Top radiators in Contour units offer up to a 17% improvement in heating efficiency over older style panel emitters.

All emitters come with 4 bosses for valve fitting as required and are covered by a 10-year warranty.

Radiator guard

All Contour's radiator guards, whether LST or anti-ligature, are designed to be robust, easy to clean and safe for users.

They are available in mild steel in gauges from 1.2mm up to 2mm, and in aluminium for  humid environments.

The guards have rounded corners and edges to minimize the risk of injury should someone fall against a unit.

For additional durability and corrosion resistance, Contour guards are all powder-coated inside and out. The standard finish is white RAL 9003, with a large range of other RAL or BS colour finishes available.

All Contour radiator guards are covered by a 5-year product warranty.

Radiator valve set

Contour’s complete systems come with high-quality Herz thermostatic radiator valves (TRVs) for either internal or external fitting.

Contour anti-ligature radiators are supplied with TRV sets with anti-ligature shrouds, as standard.

TRV sets are covered by a manufacturer’s 5-year product warranty

Key features and benefits

  • Full drop-down door for easy cleaning and maintenance access.

  • Coated with BioCote® anti-microbial technology to reduce the risk of infections.

  • Bullnose corners and radius edges to reduce the risk of cuts if the radiator is fallen against

  • Rotary valve kits allowing the radiator to be lowered down to give access to the back wall and behind the radiator.

  • Pencil-proof grilles to prevent large objects getting pushed through.

  • Major cost-savings through ease and speed of cleaning.

Hygiene and infection control

The DeepClean™ range incorporates BioCote® anti-microbial protection as standard into the paintwork of all the LST radiator guards. BioCote® technology provides effective and permanent protection to the surface of the LST radiator guard, preventing the growth of harmful microbes such as bacteria and fungi.

Regular QC testing and on-site field studies commissioned by Contour demonstrate a reduction of 99.96% in dangerous bacteria and infection such as MRSA and E.coli in less than 2hrs.

Available models

  • Flat-top floor-standing

  • Flat-top wall-mounted

  • Sloping-top wall-mounted

  • Sloping-top floor-standing

Typical applications

  • Hospitals

  • Nursing and care homes

  • Mental health facilities

  • Secure detention centres

  • Educational environments
