Colloide designs and installs complete biomass heating systems including boiler, biomass storage, pipework, buffer vessels and controls.

  • Regulated incandescent bed temperature: perfect ash formation, no slag formation.

  • Advanced microprocessor control: automatic ignition and output reduction down to 7kW, Lambda probe, weather-compensated control for up to 6 mixer circuits, optional remote control via mobile phone.

  • Self-cleaning step grate: the incandescent bed can be changed, subject to fuel.

  • Highest convenience: automatic grate and heat exchanger cleaning (mobile ash box to be emptied only approx every 2-3 months).

  • Stainless steel cyclonic combustion chamber: perfect dust separation, corrosion prevention.

  • Lasting quality: extremely robust agitator and screw conveyor design, gearboxes and motors of the highest quality, silicon-carbide combustion chamber, stainless steel linings.

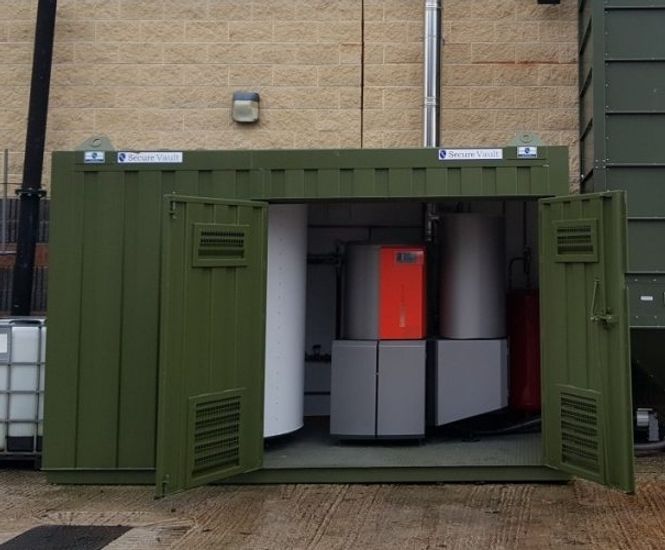

The company also offers a packaged biomass system called the Heat Pod - a complete heating solution within its own building, ready to deliver to site. This system includes boiler(s), pipework and storage; all within one unit. Some Government initiatives are currently in place to support the installation of biomass boilers. The SSRH is currently supporting biomass boiler installations in Ireland.

Whether furnace control, pellet conveying, buffer management, hot water preparation, weather- controlled heating circuit with a weekly program for two circuits, or the connected solar heating system: all of this can be controlled via a touchscreen directly on the boiler or via the internet from any PC, smartphone or tablet. It‘s a lot, but it‘s easy to handle as the images on the touchscreen are self-explanatory.

Applications

Biomass heating systems have a broad range of applications as practically all buildings require heat and energy. They provide a sustainable, low-carbon and cost-effective method of heating. These can be used in new builds or upgrades to existing buildings, from single houses up to large energy centres supplying district heating or large commercial buildings.
