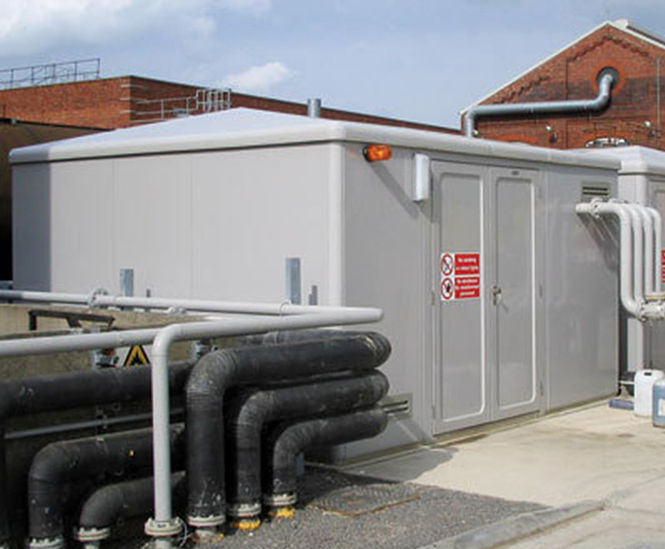

The versatile Garrison GRP Modular Housing allows for variation and relocation if needed. Tough and durable, it is ideal for electrical and switchgear enclosures, communications network housings, valve and transformer housings, monitoring and control rooms and power supply rooms.

Typical uses within the industrial, energy, communications, rail transport and public sectors include:

  • Electrical & Switchgear Housings

  • Communications Network Housings

  • Valve & Transformer Housings

  • Chlorination Plant Housings

  • Monitoring & Control Rooms

  • Generator & Compressor Housings

  • Power Supply Rooms

Design Features

  • Modular construction allows for modification and relocation in the future.

  • Tough and durable GRP (glassfibre reinforced polyester) panels with a smooth semi-gloss finish.

  • Available in standard heights of 1m up to 3.5m and layouts from 1 x 0.5m to 6 x 20m.

  • Wide range of optional features including lighting, heating, ventilation, glazing and explosion relief roofs.

  • Delivered fully assembled and off-loaded by crane as standard. Optional panel-form delivery can overcome site restriction issues.

Colours

Standard external colours:

  • Beige - nearest reference BS 4800 (10.B.19)

  • Light Grey - BS 4800 (00.A.05)

  • Dark Green - BS 4800 (14.C.39)

  • Dark Brown - BS 4800 (08.B.29)

  • Additional colour options are available on request at an additional cost.

  • Internal walls and ceiling: bare white laminate finish.

Materials

  • Panels: Smooth semi-gloss GRP (Glassfibre reinforced polyester)

Dimensions

  • Available in layouts from 1 x 0.5m to 20 x 6m (nominal internal sizes).

  • Height: 1m, 1.5m, 2m, 2.5m, 3m or 3.5m.

  • Weight: from 127kg depending on size and specification.
