Stratos GIGA is a glanded, high-efficiency in-line pump with an EC motor and electronic duty adaptation.

It is used for the pumping of heating water (acc. to VDI 2035), cold water and water / glycol mixtures without abrasive substances in heating, cold water and cooling systems.

The GIGA version is a single-stage low-pressure centrifugal pump with flange connection and mechanical shaft seal.

Design

High-efficiency inline pump with EC motor and electronic duty adaptation in glanded construction. Version as single-stage low-pressure centrifugal pump with flange connection and mechanical shaft seal.

Application

Pumping of heating water (acc. to VDI 2035), cold water and water/glycol mixtures without abrasive substances in heating, cold water and cooling systems.

Special features / product advantages

Innovative high-efficiency pump for maximum overall efficiency based on a new Wilo glanded design
High-efficiency EC motor (efficiency above IE4 limit values acc. to IEC TS 60034-31 Ed.1)
Highly efficient hydraulics, optimally adapted to the EC motor technology, with optimised efficiency, minimum efficiency index (MEI) ≥ 0.7 according to ErP Directive 2009/125/EC [Commission Regulation (EU) 547/2012]
Integrated electronic control
Control range is up to three times as high as for conventional electronically controlled pumps
Extremely compact and space-saving design
Simple operation thanks to tried-and-tested red-button technology and display
Optional interfaces for bus communication using plug-in IF-Modules
Integrated dual pump management
Fault management tailored to HVAC applications
Access disable on the pump
High standard of corrosion protection thanks to cataphoretic coating
Condensate drainage as standard
Pump bases with threaded hole for installation in the foundation

Technical data

Minimum efficiency index (MEI) ≥ 0.7
Permitted temperature range of the fluid: -20 °C to +140 °C
Mains connection 3~480 V ±10 %, 50/60 Hz, 3~440 V ±10 %, 50/60 Hz, 3~400 V ±10 %, 50/60 Hz, 3~380 V -5 % +10 %, 50/60 Hz
Protection class IP 55
Nominal diameter DN 40 to DN 100
Max. operating pressure 16 bar

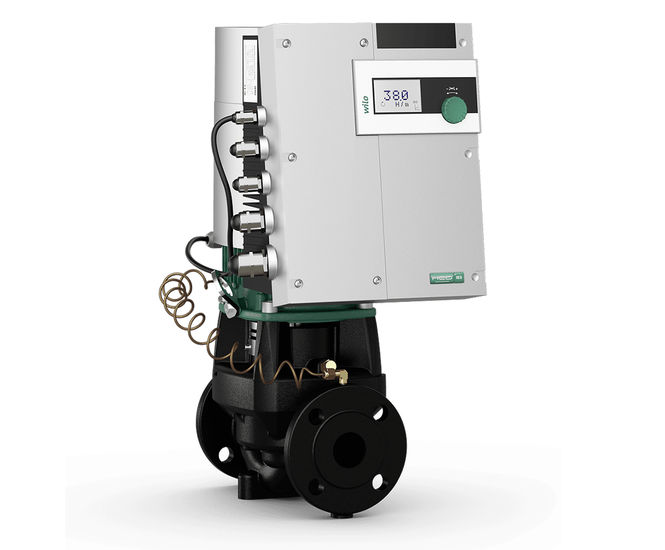

Stratos GIGA centrifugal circulation pump
