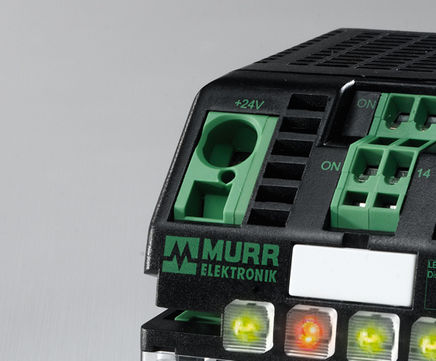

MICO ensures easy start up and availability. With the MICO concept of current distribution and overload protection you can play it safe when securing 24 V DC circuits. Start-up and operation of systems have different requirements to the power distribution which complicates the design of overload protection confirming to standards.

If the power supply and circuit breakers are not exactly matched, over-currents of short-circuits will in many cases shut down the power supply without tripping the breaker. This can shut down the whole system and/or cause the risk of fire. MICO allows dividing incoming DC power into 4 independent branches. MICO controls the maximum load of each branch (the maximum load is easily adjustable by rotary switch, indicates the approaching the maximum load, and in case of over current immediately switches the affected channel off onto safe condition.

Application areas:

Plant construction
Process automation
Machine tools
Packaging machines

Advantages and customer benefits

Up to 30% space saving
Universal for all standard current ranges
Low power-loss
Maintenance free with spring clamp terminals
Status indication with LEDs that flash at 90% of rated current
No Current limitation during operation in compliance with EN 61131-2
Group alarm output potential-free contact
Proven bridge system allows daisy-chaining of multiple units
Intergrated labels make identification very easy

Key information

Type - 2 or 4 channels
Input Voltage 24v DC
Supply Voltage Range: 18.... 31 V DC
Output: Potential free Alarm
Bridging: One or two sides, with spring clamps terminals or bridge set
Approvals: UL and CSL acc. to UL508, UL2367, C22.2 No. 14-05, GL,Gost

MICO intelligent power distribution
