Suitability Industrial
Laboratory
Offices / schools
Public spaces / retail
Sports
Functions Air conditioning
Heating
Underfloor distribution
Ventilation
Air throw High
Fabric permeability Non-permeable
Fabric properties Anti microbial
Anti-static




We use Non Permeable material when heating with Prihoda Fabric Ducting. This is so that all of the air exits the diffusers to travel to the occupied zone. We have a range of diffusers which suit a large variety of applications.

Most popular are our laser cut perforations, these start at Ø4mm and can be cut at any size above this. So we can make a range of diameters, we can make many rows or few, we can change the distance between the rows allow for more entrainment of ambient room air (or less), we can change the position of the rows on the circumference of the duct – we have an infinite range of variability that allows us to search for and create the optimum air pattern for each and every application.

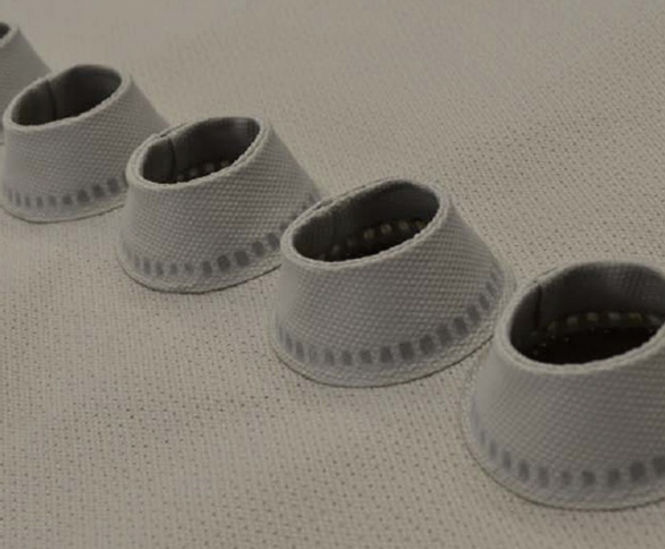

For medium air throw distances we have our Fabric Nozzles. These throw the air in a targeted direction over a longer distance, allowing for wider temperature differences or higher mounting heights. These are available in Ø20mm, Ø30mm and Ø40mm in any number of angles and configurations on the duct.

For very long throw applications, high bay warehousing or sports halls and large swimming pools we have the large diameter Fabric Nozzle which starts at Ø80mm and increases to any required diameter from there. This delivers a high air volume targeted air pattern with high entrainment.

Material Benefits
• Flame Retardant
• Anti-bacterial Protection (min 10 years efficacy)
• Non shedding cleanroom quality
• Anti-static
• 9 stock colours free
• 10 Years warranty


We use Non Permeable material when heating with Prihoda Fabric Ducting. This is so that all of the air exits the diffusers to travel to the occupied zone. We have a range of diffusers which suit a large variety of applications.

Most popular are our laser cut perforations, these start at Ø4mm and can be cut at any size above this. So we can make a range of diameters, we can make many rows or few, we can change the distance between the rows allow for more entrainment of ambient room air (or less), we can change the position of the rows on the circumference of the duct – we have an infinite range of variability that allows us to search for and create the optimum air pattern for each and every application.

For medium air throw distances we have our Fabric Nozzles. These throw the air in a targeted direction over a longer distance, allowing for wider temperature differences or higher mounting heights. These are available in Ø20mm, Ø30mm and Ø40mm in any number of angles and configurations on the duct.

For very long throw applications, high bay warehousing or sports halls and large swimming pools we have the large diameter Fabric Nozzle which starts at Ø80mm and increases to any required diameter from there. This delivers a high air volume targeted air pattern with high entrainment.

Material Benefits
• Flame Retardant
• Anti-bacterial Protection (min 10 years efficacy)
• Non shedding cleanroom quality
• Anti-static
• 9 stock colours free
• 10 Years warranty
