Suitability Dirty water
Housing Cast iron
Installation Submersible
Power supply (V / Hz) 220-240 1~
Max. particle size 20mm
Max. liquid temperature (deg. C) 40°C

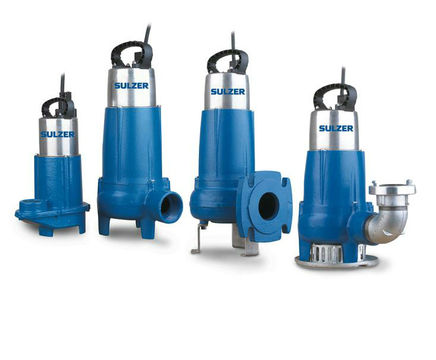

The MF 154-804 range of compact and submersible light wastewater pumps is suitable for the reliable and effective dewatering of buildings and sites in accordance with EN 12050-2.

Applications

  • MF submersible pumps have been designed to cover a wide range of internal and external dewatering applications. The pumps can manage large solids.
  • Filling and emptying of containers, drainage of flooded cellars and removal of rainwater.
  • Suitable for use in septic tanks and the pumping of effluent from locations below the backwash level in accordance with EN 12056.
  • For locations such as building sites, the MF 354, MF 504 and MF 804 are available in a VO version, featuring a protective screen, elbow and hose coupling.
  • Vortex hydraulics are particularly suitable for the pumping of fluids containing gaseous or abrasive particles.
  • Maximum allowable temperature of 40°C for continuous use, or up to 60°C for intermittent operation (maximum of 5 minutes).

Features

  • Compact pumps that are simple and cost-effective to install.
  • Vortex hydraulics for blockage-free pumping in critical applications.
  • Free-standing or pedestal-mounted.
  • Discharge connections G 11/4-G 2 internal thread and DN 65 flange.
  • Mechanical and lip seals on rotor shaft.
  • Thermal sensors to protect motor against overheating.
  • KS version with float switch for automatic level control.
  • EasyFit plug-in cable connection.
  • Single-phase motor fitted with Europlug; three-phase fitted with CEE plug.


The MF 154-804 range of compact and submersible light wastewater pumps is suitable for the reliable and effective dewatering of buildings and sites in accordance with EN 12050-2.

Applications

  • MF submersible pumps have been designed to cover a wide range of internal and external dewatering applications. The pumps can manage large solids.
  • Filling and emptying of containers, drainage of flooded cellars and removal of rainwater.
  • Suitable for use in septic tanks and the pumping of effluent from locations below the backwash level in accordance with EN 12056.
  • For locations such as building sites, the MF 354, MF 504 and MF 804 are available in a VO version, featuring a protective screen, elbow and hose coupling.
  • Vortex hydraulics are particularly suitable for the pumping of fluids containing gaseous or abrasive particles.
  • Maximum allowable temperature of 40°C for continuous use, or up to 60°C for intermittent operation (maximum of 5 minutes).

Features

  • Compact pumps that are simple and cost-effective to install.
  • Vortex hydraulics for blockage-free pumping in critical applications.
  • Free-standing or pedestal-mounted.
  • Discharge connections G 11/4-G 2 internal thread and DN 65 flange.
  • Mechanical and lip seals on rotor shaft.
  • Thermal sensors to protect motor against overheating.
  • KS version with float switch for automatic level control.
  • EasyFit plug-in cable connection.
  • Single-phase motor fitted with Europlug; three-phase fitted with CEE plug.
