Media pumped Sewage
Suitability Commercial / leisure
Residential, multiple dwellings
Residential, single dwellings
Installation Underground
No. of pumps Single
Enclosure construction Polyethylene

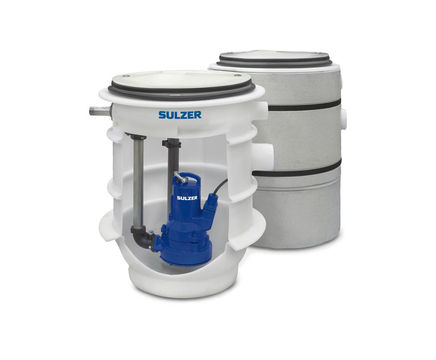

ABS Synconta 700 and 700L synthetic prefabricated sumps are designed as a single pumping station for the effective dewatering of buildings and areas below the sewer level. It is made in accordance with EN 12050-2.

Synconta 700 and 700L are designed as complete wastewater sumps for internal (above-ground), or external (below-ground) installation, and to fit an ABS pump from the Piranha range. They are also suitable for pumping sewage containing faecal matter when installed outside of areas covered by EN.

Benefits

  • Synthetic, corrosion-resistant tank supplied as standard with a plastic lid, discharge pipe work, and coupling with a non-return ball valve
  • Available with optional polystyrene jacket to insulate against noise and excessive external temperatures
  • Easy to transport, with simple discharge line connection
  • Simple to install and maintain. The pump seals automatically onto the discharge line when lowered into the high-level coupling

Features

  • Type ABS Piranha submersible grinder pump with shredding system hydraulics can cut and pump wastewater containing solids through small diameter discharge lines from 1¼”
  • Automatic pump and level control by pressure sensor system
  • Single DN 100 inflow port for DIN push-on connection. One DN 70 port for venting and use as a cable duct (supplied as standard with plug/cable inlet seal)
  • Compact, robust synthetic (PE) collection tank of compact design


ABS Synconta 700 and 700L synthetic prefabricated sumps are designed as a single pumping station for the effective dewatering of buildings and areas below the sewer level. It is made in accordance with EN 12050-2.

Synconta 700 and 700L are designed as complete wastewater sumps for internal (above-ground), or external (below-ground) installation, and to fit an ABS pump from the Piranha range. They are also suitable for pumping sewage containing faecal matter when installed outside of areas covered by EN.

Benefits

  • Synthetic, corrosion-resistant tank supplied as standard with a plastic lid, discharge pipe work, and coupling with a non-return ball valve
  • Available with optional polystyrene jacket to insulate against noise and excessive external temperatures
  • Easy to transport, with simple discharge line connection
  • Simple to install and maintain. The pump seals automatically onto the discharge line when lowered into the high-level coupling

Features

  • Type ABS Piranha submersible grinder pump with shredding system hydraulics can cut and pump wastewater containing solids through small diameter discharge lines from 1¼”
  • Automatic pump and level control by pressure sensor system
  • Single DN 100 inflow port for DIN push-on connection. One DN 70 port for venting and use as a cable duct (supplied as standard with plug/cable inlet seal)
  • Compact, robust synthetic (PE) collection tank of compact design
