Media pumped Sewage
Suitability Residential, multiple dwellings
Residential, single dwellings
Installation Above ground
No. of pumps Multiple
Single
Enclosure construction Polyethylene
Max. head (m) 20

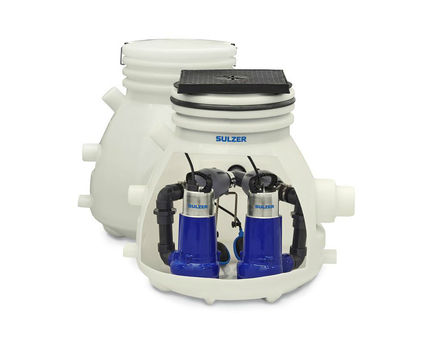

Sanisett 1 and 2 are single and twin pumping stations designed for the effective dewatering of buildings and areas below the sewer level. They are made in accordance with EN 12050-2.

Sanisett is designed as a complete wastewater sump for above- or below-ground installation, and for use with ABS pumps from the Robusta, Coronada, Piranha and MF ranges.

Applications

  • above- or below-ground use
  • fecal-free domestic and commercial wastewater
  • buildings and areas below the sewer level

Features

  • Globular shape for extra strength. The below-ground version has a manhole cover with floor run-off, and the option of an odour lock with aeration and venting. The above-ground version is available with a plastic lid (accessory).
  • The unit is universally adjustable in height and can be swivelled, allowing easy alignment with floor levels and tiling patterns, independent of the inflow or direction of the discharge lines.
  • Plastic cover for protection of the floor grating during installation work.
  • Heads up to 20m with Piranha 08/09 pumps.
  • Suitable for use as a floor drain.
  • Maximum temperature of the media is 40°C for continuous operation; up to 60°C for intermittent (maximum of 5 minutes).


Sanisett 1 and 2 are single and twin pumping stations designed for the effective dewatering of buildings and areas below the sewer level. They are made in accordance with EN 12050-2.

Sanisett is designed as a complete wastewater sump for above- or below-ground installation, and for use with ABS pumps from the Robusta, Coronada, Piranha and MF ranges.

Applications

  • above- or below-ground use
  • fecal-free domestic and commercial wastewater
  • buildings and areas below the sewer level

Features

  • Globular shape for extra strength. The below-ground version has a manhole cover with floor run-off, and the option of an odour lock with aeration and venting. The above-ground version is available with a plastic lid (accessory).
  • The unit is universally adjustable in height and can be swivelled, allowing easy alignment with floor levels and tiling patterns, independent of the inflow or direction of the discharge lines.
  • Plastic cover for protection of the floor grating during installation work.
  • Heads up to 20m with Piranha 08/09 pumps.
  • Suitable for use as a floor drain.
  • Maximum temperature of the media is 40°C for continuous operation; up to 60°C for intermittent (maximum of 5 minutes).


Interested in this product?
Call 0870 608 0123
OR



Downloads
  • Sanisett dimension sheet
    Sanisett dimension sheet
    1pp 96 KB
    Download
  • Sanisett 1 and 2 lifting station
    Sanisett 1 and 2 lifting station
    4pp 1.1 MB
    Download
  • Nirolift/Sanisett installing and operating
    Nirolift/Sanisett installing and operating
    10pp 1.4 MB
    Download
