Media pumped Sewage
Suitability Commercial / leisure
Residential, multiple dwellings
Residential, single dwellings
Installation Above ground
No. of pumps Multiple
Enclosure construction Polyethylene

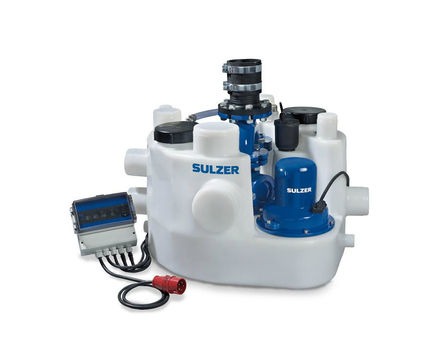

Sanimat 1002 is a flood-proof, double lifting station for automatic sewage pumping from areas below the backwash level. The station is in accordance with EN 12050-1.

Sanimat 1002 is ideal for effective dewatering of

Applications

  • Domestic residences
  • Commercial developments
  • New build
  • Refurbishment

Features

  • Plug-in unit with CEE plug-and-phase sequence changeover facility.
  • Easily transported and fitted. Compact dimensions allow access through a standard door opening.
  • Dynamic pressure level sensor on the tank, with separate sensors for inflow level and high water level alarm.
  • Trouble-free maintenance as the motor housing can be simply removed.
  • Five horizontal inlet ports (4 x DN 100, 1 x DN 150) and three vertical (2 x DN 100, 1 x DN 150). Vertical vent line DN 70. Two small diameter ports (DN 40/50), suitable for wastewater only.
  • DN 40 is suitable for connection of a hand membrane pump.
  • Discharge flange DN 80, as well as flanged socket with 4 sleeve and clips (for discharge pipe DN80/100).
  • Integrated valve system consisting of two non- return ball valves.
  • Two quiet operating pumps due to four-pole, slow-running motors.
  • Direct toilet connection possible in the case of wall-mounted WC units.
  • Vortex impeller for reliable pumping of both faecal and faecal-free sewage.
  • Sloping container floor that prevents deposits.
  • Built-in mains alarm (visual and acoustic) that can be converted to mains-independent by inserting battery.
  • Maximum temperature of the media is 40°C for continuous operation; up to 60 °C for intermittent (maximum of 5 minutes).


Sanimat 1002 is a flood-proof, double lifting station for automatic sewage pumping from areas below the backwash level. The station is in accordance with EN 12050-1.

Sanimat 1002 is ideal for effective dewatering of

Applications

  • Domestic residences
  • Commercial developments
  • New build
  • Refurbishment

Features

  • Plug-in unit with CEE plug-and-phase sequence changeover facility.
  • Easily transported and fitted. Compact dimensions allow access through a standard door opening.
  • Dynamic pressure level sensor on the tank, with separate sensors for inflow level and high water level alarm.
  • Trouble-free maintenance as the motor housing can be simply removed.
  • Five horizontal inlet ports (4 x DN 100, 1 x DN 150) and three vertical (2 x DN 100, 1 x DN 150). Vertical vent line DN 70. Two small diameter ports (DN 40/50), suitable for wastewater only.
  • DN 40 is suitable for connection of a hand membrane pump.
  • Discharge flange DN 80, as well as flanged socket with 4 sleeve and clips (for discharge pipe DN80/100).
  • Integrated valve system consisting of two non- return ball valves.
  • Two quiet operating pumps due to four-pole, slow-running motors.
  • Direct toilet connection possible in the case of wall-mounted WC units.
  • Vortex impeller for reliable pumping of both faecal and faecal-free sewage.
  • Sloping container floor that prevents deposits.
  • Built-in mains alarm (visual and acoustic) that can be converted to mains-independent by inserting battery.
  • Maximum temperature of the media is 40°C for continuous operation; up to 60 °C for intermittent (maximum of 5 minutes).
