Product name PCE-PMI 1BT
Suitability Interior locations
Gases / parameters Relative humidity
Type Portable
Features Datalogging

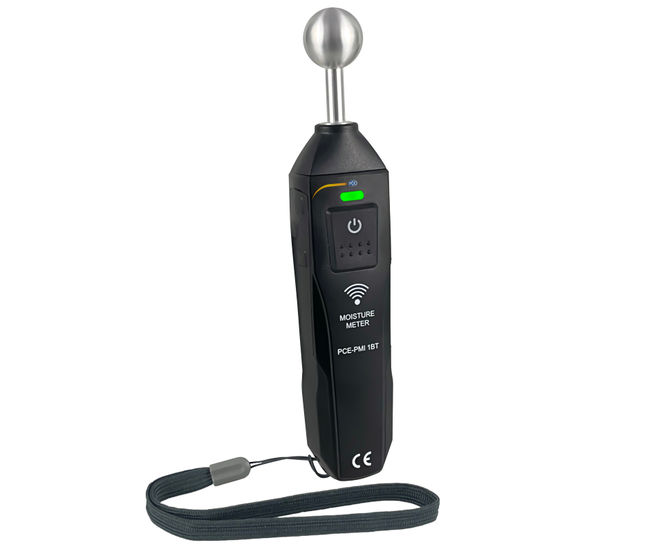

The PCE-PMI 1BT is a compact moisture meter that provides non-destructive testing to measurement depths of between 20 and 40mm. Instead of having a display, thePCE-PMI 1BT uses a Bluetooth 4.0 interface to send measurement data to a mobile device. A free 'PCE Smart Measure Environmental' app is then used to display, save and store values on a mobile device. This moisture meter is therefore ideal for anyone who frequently checks the moisture in buildings or stored materials and wants to document results easily.

Operation

To make a measurement, the ball head of the PCE-PMI 1BT is simply placed on the surface of the material to be inspected. For common absorbent materials, the capacitive sensor achieves a penetration depth of 20 to 40mm.

Applications

The PCE-PMI 1BT moisture meter is not preconfigured for specific materials and can therefore be used universally. However, the numerical percentage values displayed in the app should not be interpreted as percentages for the relative humidity of a material or building material. The displayed measured values are nevertheless well suited to quickly identifying areas with moisture penetration and to narrow down the areas with the highest moisture. By making repeated measurements in the same place at different times, it is also easy to check whether the moisture content is falling, stagnating or rising.

Key features

  • Compact moisture meter for non-destructive testing
  • Capacitive metal spheroid moisture sensor
  • Measurement depth of 20 to 40mm
  • Bluetooth 4.0 interface
  • Fee app ”PCE Smart Measure Environmental“ to view, save and export measured values


The PCE-PMI 1BT is a compact moisture meter that provides non-destructive testing to measurement depths of between 20 and 40mm. Instead of having a display, thePCE-PMI 1BT uses a Bluetooth 4.0 interface to send measurement data to a mobile device. A free 'PCE Smart Measure Environmental' app is then used to display, save and store values on a mobile device. This moisture meter is therefore ideal for anyone who frequently checks the moisture in buildings or stored materials and wants to document results easily.

Operation

To make a measurement, the ball head of the PCE-PMI 1BT is simply placed on the surface of the material to be inspected. For common absorbent materials, the capacitive sensor achieves a penetration depth of 20 to 40mm.

Applications

The PCE-PMI 1BT moisture meter is not preconfigured for specific materials and can therefore be used universally. However, the numerical percentage values displayed in the app should not be interpreted as percentages for the relative humidity of a material or building material. The displayed measured values are nevertheless well suited to quickly identifying areas with moisture penetration and to narrow down the areas with the highest moisture. By making repeated measurements in the same place at different times, it is also easy to check whether the moisture content is falling, stagnating or rising.

Key features

  • Compact moisture meter for non-destructive testing
  • Capacitive metal spheroid moisture sensor
  • Measurement depth of 20 to 40mm
  • Bluetooth 4.0 interface
  • Fee app ”PCE Smart Measure Environmental“ to view, save and export measured values
