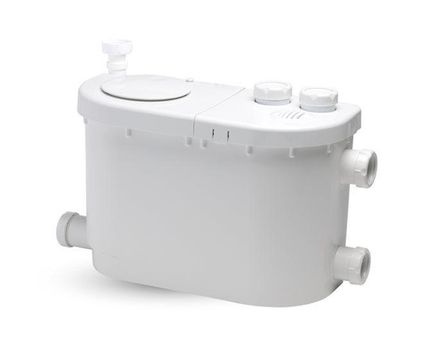

Product name Wasteflo LS5
Media pumped Grey water
Raw water
Suitability Commercial / leisure
Residential, multiple dwellings
Residential, single dwellings
Installation Above ground
Enclosure construction Polypropylene
Flow capacity (litres/s) 120
Max. horizontal output (m) 72
Dimensions (mm) 413x180x278mm




The Wasteflo LS5 lifting station is suitable for use with a shower, bath, basin, sink, washing machine and dishwasher.

Key features

  • Two-year guarantee
  • Pumps up to 7m vertically or 72m horizontally
  • Flow rates up to 120 litres/min
  • Easy access removable cassette system
  • Compact design
  • Two top inlets and three side inlets with integral non-return valves
  • 32mm (1¼") diameter waste outlet
  • Quiet operation
  • Continuously rated
  • Pre-wired with 1.5m power cable

Specifications

  • Maximum vertical pumping distance: 7m
  • Maximum horizontal pumping distance: 72m
  • Min water temperature: 4°C
  • Max water temperature: 50°C
  • Enclosure material: polypropylene
  • Enclosure rating: IPX4
  • Inlet: 32mm
  • Outlet: 32mm
  • Typical noise: 50 dB(A)

Dimensions

  • Width: 413mm
  • Depth: 180mm
  • Height: 278mm
  • Weight - including fittings: 7.8kg


The Wasteflo LS5 lifting station is suitable for use with a shower, bath, basin, sink, washing machine and dishwasher.

Key features

  • Two-year guarantee
  • Pumps up to 7m vertically or 72m horizontally
  • Flow rates up to 120 litres/min
  • Easy access removable cassette system
  • Compact design
  • Two top inlets and three side inlets with integral non-return valves
  • 32mm (1¼") diameter waste outlet
  • Quiet operation
  • Continuously rated
  • Pre-wired with 1.5m power cable

Specifications

  • Maximum vertical pumping distance: 7m
  • Maximum horizontal pumping distance: 72m
  • Min water temperature: 4°C
  • Max water temperature: 50°C
  • Enclosure material: polypropylene
  • Enclosure rating: IPX4
  • Inlet: 32mm
  • Outlet: 32mm
  • Typical noise: 50 dB(A)

Dimensions

  • Width: 413mm
  • Depth: 180mm
  • Height: 278mm
  • Weight - including fittings: 7.8kg
