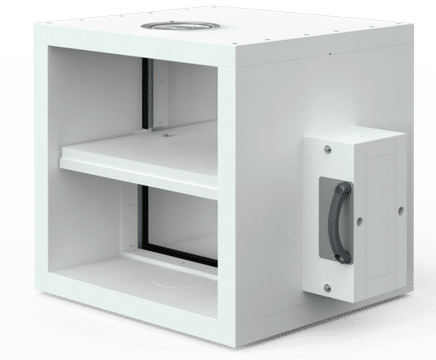

Type EK2-EU - Smoke Control Damper

For mechanical smoke extract systems and as an additional supply air inlet

Rectangular smoke control dampers with extract ventilation function, for smoke extract with mechanical smoke extract systems or as an additional supply air inlet

Application

• Smoke control dampers of Type EK-EU, with CE marking and declaration of performance, for smoke extract with mechanical smoke extract systems; also for natural smoke and heat exhaust systems
• Provision of fresh air supply for mechanical smoke extract systems
• Extract ventilation function is possible if the mechanical smoke extract system has been approved (general building approval) for extract ventilation
• Integration into the central BMS with TROXNETCOM

Special characteristics

• Declaration of performance according to Construction Products Regulation
• Classification to EN 13501-4, EI 90 (vedw – hodw, i↔o) S1500 Cmod MA multi
• Cmod Use for ventilation function in combined systems and intermediate position for hydraulic balancing with TROXNETCOM
• Complies with the requirements of EN 12101-8
• Tested for fire resistance properties to DIN 1366-10 and EN 1366-2
• Casing air leakage to EN 1751, class C
• Low sound power level and differential pressure
• Any airflow direction
• Integration into the central BMS with TROXNETCOM
• General building inspectorate licence Z-56.4212-990

Classification

• EI 90 (vedw – hodw, i ↔ o) S1500 Cmod MA multi to EN 13501-4

Nominal sizes

• Width/height 200/200 – 1500/800 mm (in increments of 1 mm)
• Casing length L = 600 mm or 800 mm, depending on casing height
• 490 mm upon request
