Configuration Four pipe
Two pipe
Orientation Horizontal
Installation Ceiling mounted

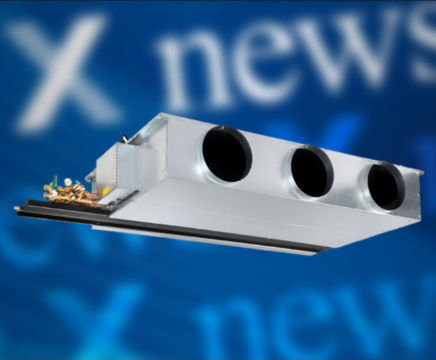

Type PWX Series horizontal chassis-type waterside fan coil units are for use in concealed or exposed installations.

Specifications

  • Nominal sizes 60, 90, 120, 150, 180 and 205
  • Volume flow rate range 50-636 l/s or 180-2289m3/h
  • Casing manufactured with 1.2mm galvanised steel with powder-coat finish
  • Condensate drip tray made of galvanised steel with powder-coat finish
  • Heat exchanger for cooling (2-pipe) or cooling and heating (4-pipe) systems
  • Easy filter change, no tools required
  • Access hatch with integrated hinge
  • Acoustically optimised EC/DC fans with low specific fan powers and variable supply air volume control (0-10v signal)

Optional equipment and accessories

  • Integrated controls package
  • Inlet attenuator
  • Discharge attenuator
  • Inlet plenum
  • Electric heating
  • Circular or rectangular discharge connection


Type PWX Series horizontal chassis-type waterside fan coil units are for use in concealed or exposed installations.

Specifications

  • Nominal sizes 60, 90, 120, 150, 180 and 205
  • Volume flow rate range 50-636 l/s or 180-2289m3/h
  • Casing manufactured with 1.2mm galvanised steel with powder-coat finish
  • Condensate drip tray made of galvanised steel with powder-coat finish
  • Heat exchanger for cooling (2-pipe) or cooling and heating (4-pipe) systems
  • Easy filter change, no tools required
  • Access hatch with integrated hinge
  • Acoustically optimised EC/DC fans with low specific fan powers and variable supply air volume control (0-10v signal)

Optional equipment and accessories

  • Integrated controls package
  • Inlet attenuator
  • Discharge attenuator
  • Inlet plenum
  • Electric heating
  • Circular or rectangular discharge connection
