Scope Precision air conditioning
Sector Commercial
Function Cooling only
Installation Underfloor
Features Ducted




The CAM-C underfloor zonal air conditioning system uses the raised floor void as a plenum for the distribution and return of air. Within the floor void, flexible baffle material segregates zones into supply and return plena.

A CAM-C system is the best option for increasing headroom in height-restricted buildings and where ceilings may be left exposed to highlight architectural features.

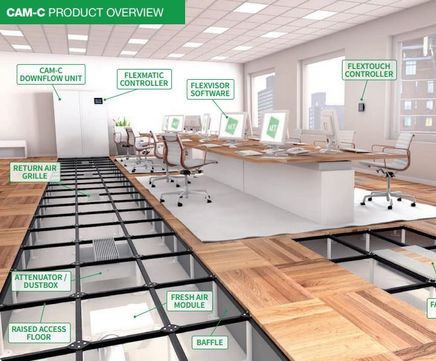

System components

  • CAM-C unit: delivers conditioned air into the plenum and receives return air
  • Fantile (fan air terminal): delivers conditioned air to the workspace
  • TUC: floor-standing fan terminal unit where there's insufficient space for recessed terminals
  • Fatronic: integrated controller for fan terminal units
  • Flexmatic: display unit allowing visual access and control of units
  • Flextouch: wall-mounted touchscreen remote controller for fantiles
  • Raised access floor: creates underfloor plenum for supply / return of conditioned air
  • Return air grilles: to fit different floor finishes
  • Air segregation baffle: to divide underfloor plenum into supply / return air channels
  • Fresh air module: draws additional air from outside to boost airflow
  • Attenuator: dust collection trays and acoustic cross talk attenuators


The CAM-C underfloor zonal air conditioning system uses the raised floor void as a plenum for the distribution and return of air. Within the floor void, flexible baffle material segregates zones into supply and return plena.

A CAM-C system is the best option for increasing headroom in height-restricted buildings and where ceilings may be left exposed to highlight architectural features.

System components

  • CAM-C unit: delivers conditioned air into the plenum and receives return air
  • Fantile (fan air terminal): delivers conditioned air to the workspace
  • TUC: floor-standing fan terminal unit where there's insufficient space for recessed terminals
  • Fatronic: integrated controller for fan terminal units
  • Flexmatic: display unit allowing visual access and control of units
  • Flextouch: wall-mounted touchscreen remote controller for fantiles
  • Raised access floor: creates underfloor plenum for supply / return of conditioned air
  • Return air grilles: to fit different floor finishes
  • Air segregation baffle: to divide underfloor plenum into supply / return air channels
  • Fresh air module: draws additional air from outside to boost airflow
  • Attenuator: dust collection trays and acoustic cross talk attenuators
